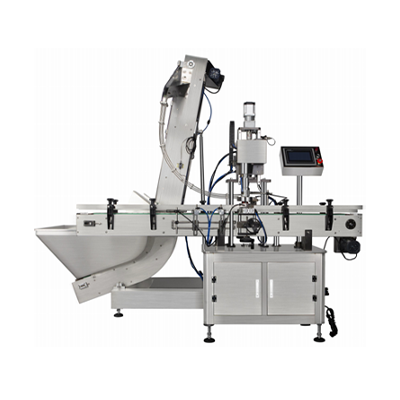

Automatic Single Head Capping Machine With Cap Elevator

Vulcantech offers different types high performance cap handling system and bottle capping machines can meets the complete spectrum of application requirements across a diverse range of industries.

Get in touch with a Vulcantech representative near you for more information about our capping systems and equipment, we are always looking forward to hearing from you.

Description

Our single-head capping machine, which automatically unscrambles and retrieves lids, is controlled by a PLC program. Two cylinders secure the bottles and facilitate the automatic arrangement of caps.The process involves initially grasping the lid and then completing the capping action under the control of the double-acting cylinder's lifting stroke.

The machine employs a pneumatic mechanism to grasp the lids, and the lid-revolving head is equipped with a clutch to prevent damage to securely tightened lids. This machine is suitable for capping drums weighing 1-30 kg and plastic caps with large diameters.

Specification

• Power: 380V / 50HZ  3-phase, 2.5KW
• Capacity: 0-1000 bottles/hour
• Bottle diameter: Φ 35-Φ 140mm
• Bottle height: 38-450 mm
• Cap diameter: Φ 20-Φ 70mm
• Weight: 500kg
• Machine dimension: 2800(L)*850(W)*2000(H)mm

Features

1. The capping device is adjustable to match various sizes of bottle open and caps.
2. Flexible for different kinds of round bottles, square bottles, and flat bottles.
3. Capping time is adjustable to match different levels of tightness.
4. Equipped with customized made cap holder and correction plate to ensure the accuracy and efficiency of capping.
5. The HMI can save 10-20 kinds of different operating parameters and easy to switch.

Control System

• Program by PLC
• HMI Touch Screen
• Emergency Stop Button
