Edge Protection

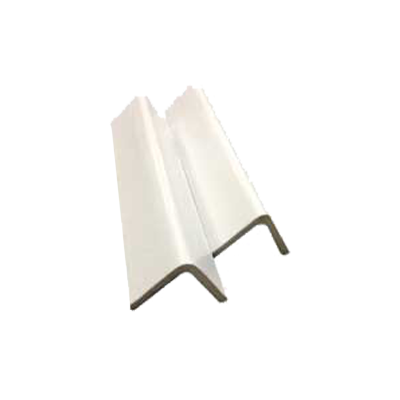

White Edge Protector

加入詢問單 (0)

Description

Width: 35mm x 35mm ~ 100mm x 100mm
Thickness : 2mm ~ 10mm
Length: Length are available on request
Packing: Bundle
Product Weight: Depend on size
Comliance Certificate: –
RohS: Yes
REACH: N/A

Test Condition

Temp 30C RH 75%
Test Speed of 20mm per minute
Break Rate 85%
The Edge Compression Test was conducted by using a specimen height of 100mm
The Flexural Stiffness Test was conducted by using a beam length of 140mm

Raw Material

Core Board Paper
Cold-Based Water Soluble Glue

Product Outer Dimension

A	B
35mm ± 2mm	35mm ± 2mm
40mm ± 2mm	40mm ± 2mm
50mm ± 2mm	50mm ± 2mm
60mm ± 2mm	60mm ± 2mm
90mm ± 2mm	90mm ± 2mm
C
1.2 ~ 7mm ±/- 0.5mm
D	E
85 ~ 90	xxxxmm ± 5mm

Edge Protector Product Performances

Dimension	Thickness	Edge Compression Test	Flexural Stiffness Test
35mm x 35 mm	3mm 4mm 5mm	120 kg ± 10% 200kg ± 10% 230kg ± 10%	50kg ± 10% 70kg ± 10% 90kg ± 10%
50mm x 50 mm	2mm 3mm 4mm 5mm	70 kg ± 10% 170kg ± 10% 260kg ± 10% 310kg ± 10%	40kg ± 10% 80kg ± 10% 100kg ± 10% 125kg ± 10%
60mm x 60 mm	3mm 4mm 5mm	220kg ± 10% 280kg ± 10% 350kg ± 10%	80kg ± 10% 100kg ± 10% 125kg ± 10%

Benefits of Use

Our edge protectors are widely used as an economical alternative for protecting and securing loads. It prevents damages to the edges of palletized loads and reduces complaints/ claims from customers. It is an ideal option for stretch wrapping system.


Edge Protection	Stabilizes/ Improves Stacking Strength	Internal Protection	Flexible Protection
Edge protectors have proven their values in strengthening and stabilizing loads without affecting the edges/ sides of shipment.	Combined with strapping, edge protectors help to eliminate skids and damages, while providing extra strength when double stacking.	Reinforcing corrugated paper boxes to ensure safety in transit and enhancing additional stacking strength.	Specifically designed for product protection of different shapes. Provides safety and prevents damages during storage or transit.
