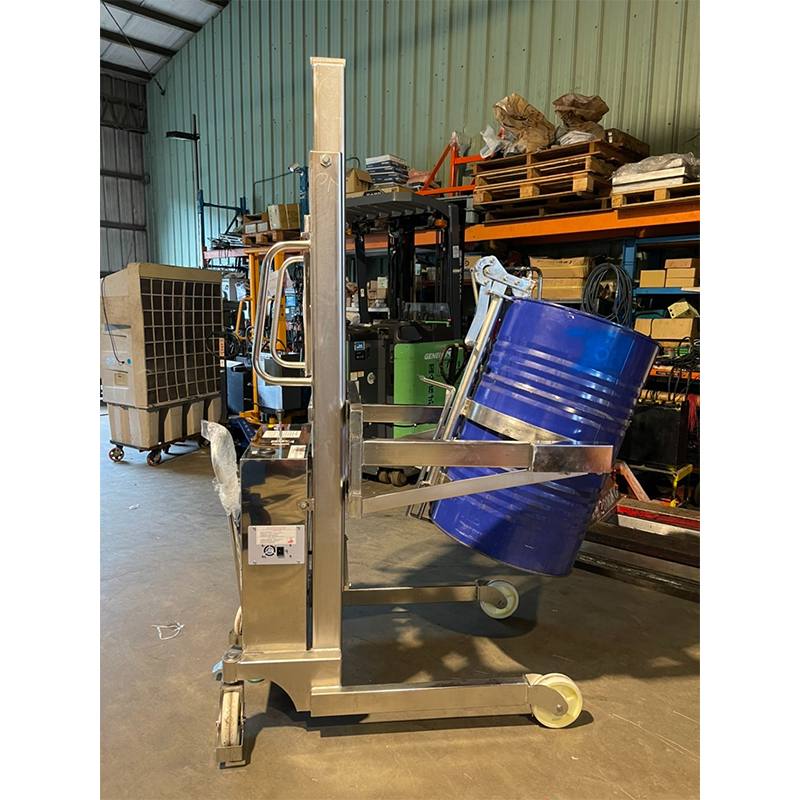

Oil Drum Lifter
Oil Drum Lifter
Vulcantech provides wide range of products and technical solutions for all tasks related to the handling of drums - whether lifting, moving, turning, tilting or emptying.
Specification
- Machine size: 740W*1300L*1870H mm
- Capacity: 300kg (including drum)
- Lifting: 2390mm( drum bottom to floor)
- Lifting and tilting drum: Electric
- Lifting motor: DC12V 1500W*1
- Tilting motor: DC12V 100W *1
- Controls:
- Wire control - drum tilting
- Waterproof button control (on machine) - lifting
- Battery: 12VN120*1 (Sealed Maintenance Free, explosion proof)
- Charger: DC12V10A, AC/110/220V
- Machine body in SUS304 (Hydraulic cylinder surface by electroplating)
- Clamp" SUS304 type
- Motor will have SUS304 cover if needed
- Wheel: Nylon type Ø180*50
