Lifting Platform

Lifting Platform

加入詢問單 (0)

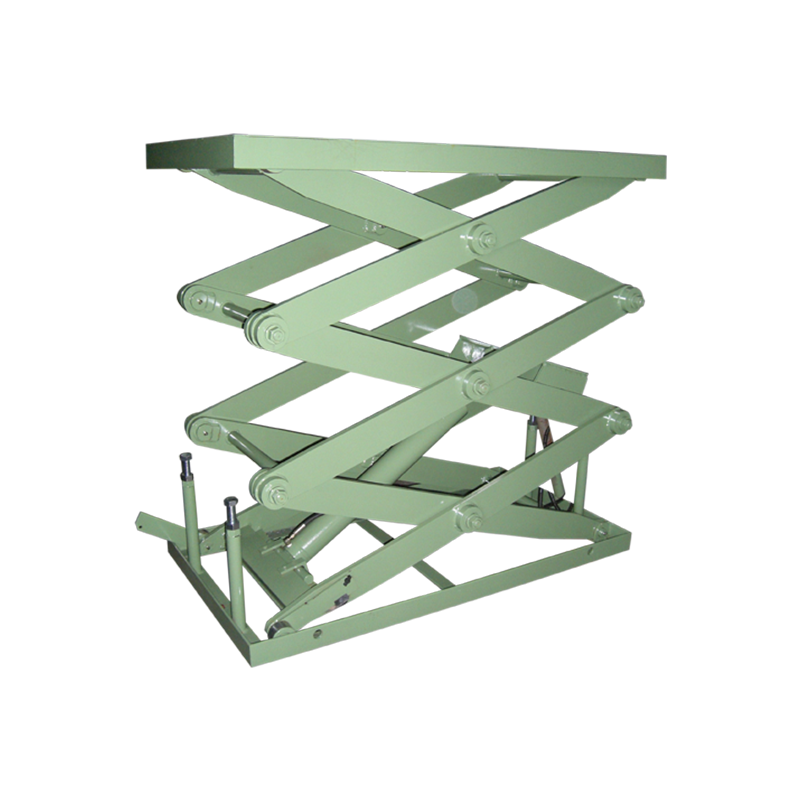

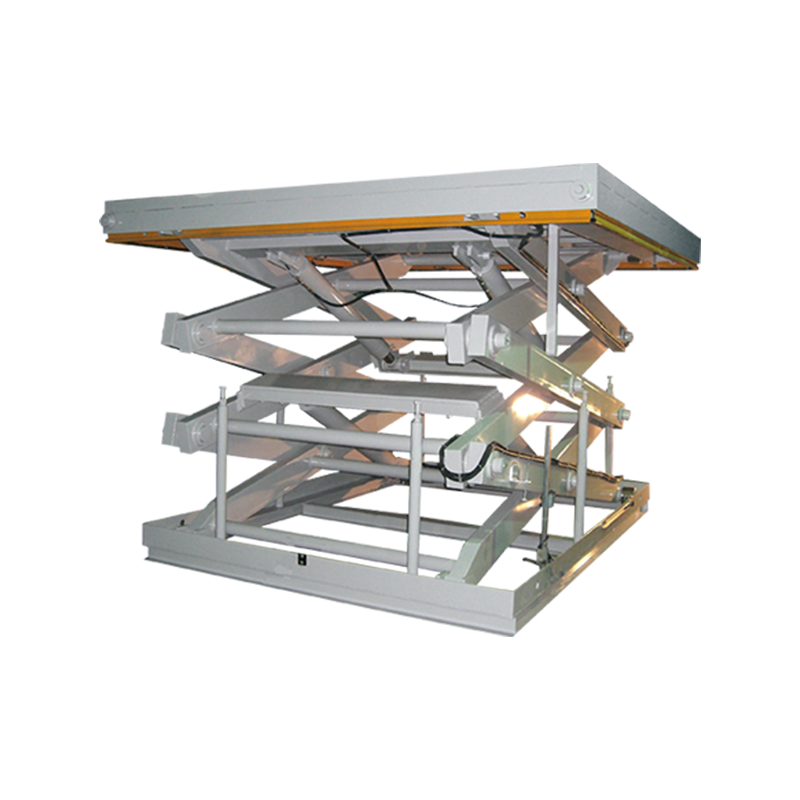

Having a low profile and being able to be either floor or pit mounted, an electric or hydraulic lift Platform offers an easy solution to many production and assembly operations, such as unloading of pallets at a more comfortable operator height. Make the factory workflow efficient and friendly to operators.


  • Power: 220V/ 60hz 3- phase
  • Table dimention: 1200(L)*1200(W)mm
  • Capacity: 500 kg (max)
  • Table height: 400mm (lowest) to 2000mm (highest)
  • Overload protection
  • Throttle valve for table lowering speed control
  • Machine body washable
  • Power control box movable(standard: 2m)
  • Wire controller equipped (Standard)
  • Working way: lifting while pressing control button - 32 sec from 400mm (lowest) to 2000mm (highest)
  • Top table: Stainless Steel (Thickness: 6T)
  • Base frame: Stainless Steel
  • Machine structure: Hot dip galvanized
