Pallet Magazine

Pallet Magazine

加入詢問單 (0)

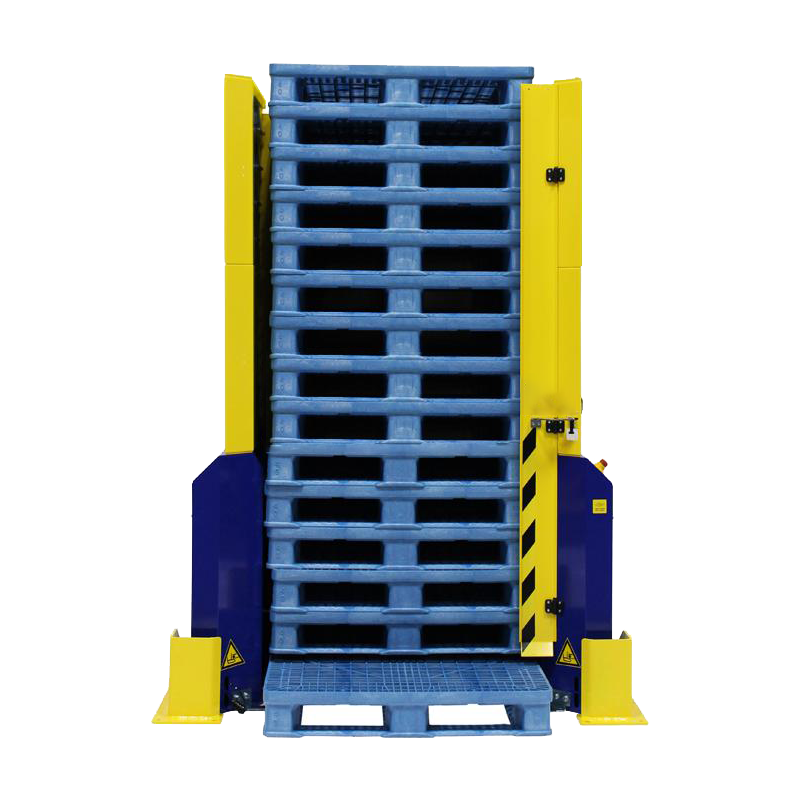

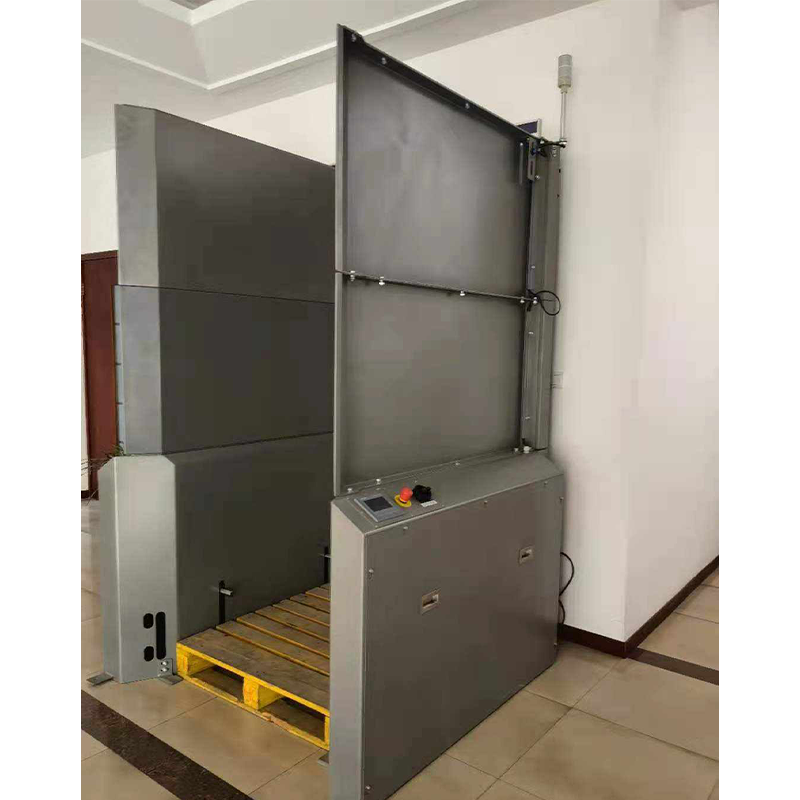

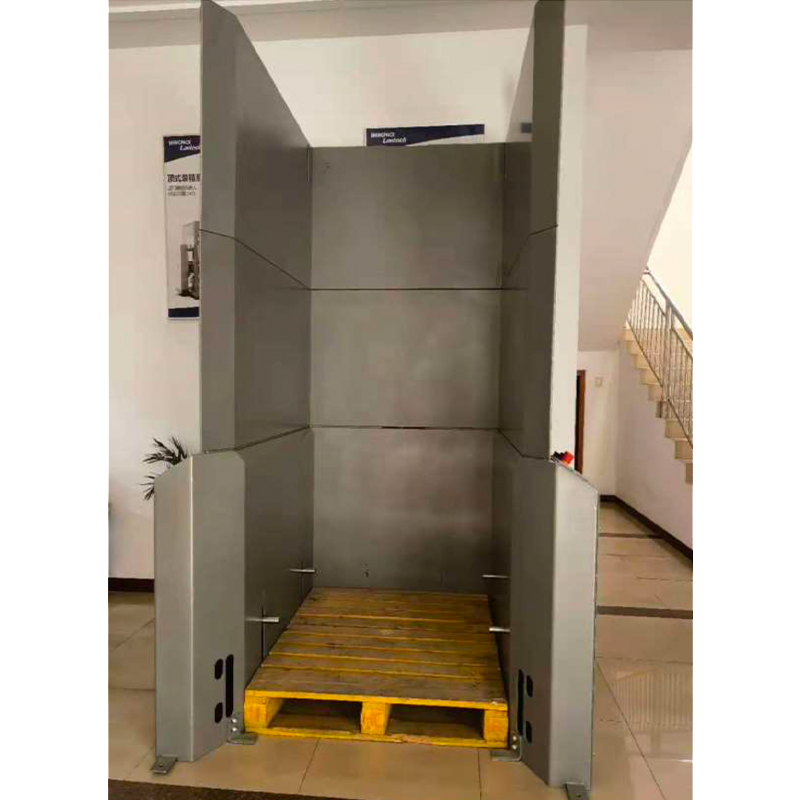

The machine automates pallet handling and streamlines workflow by stacking and destacking pallets, thereby sparing employees from heavy lifting of pallets


  • Pallet stock quantity: 20-25 pieces
  • Pallet type: 4-way entry
  • Max loading: 600kg
  • Speed: Max 4-6pallet/min
  • Frame materials: Carbon steel
  • Power: 0.6kw
  • Pressure: 0.6Mpa
  • Air consumption: 150NI/min
  • Voltage: 380v 50hz 3ph
  • PLC: Siemens PLC
  • Sensor: Sick

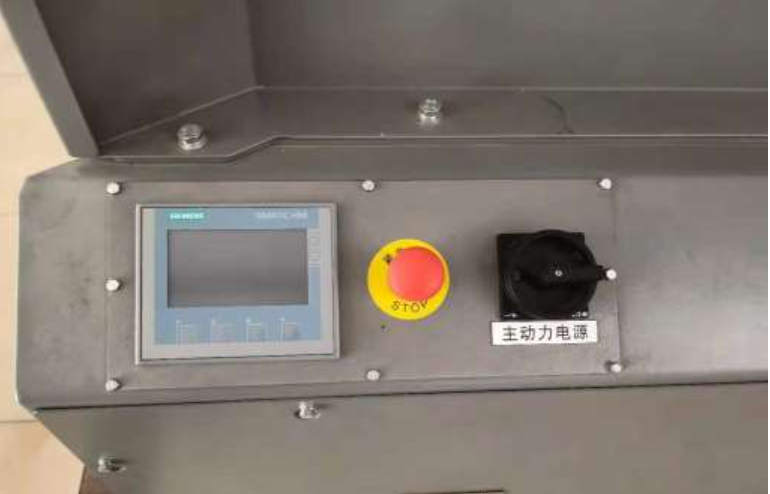

  • Touch screen: Siemens
  • Cylinder: Festo


The advantages of using the pallet magazine:
  1. Space saving
  2. Optimized pallet flow
  3. Improve work efficiency
  4. Reduced pallet costs
